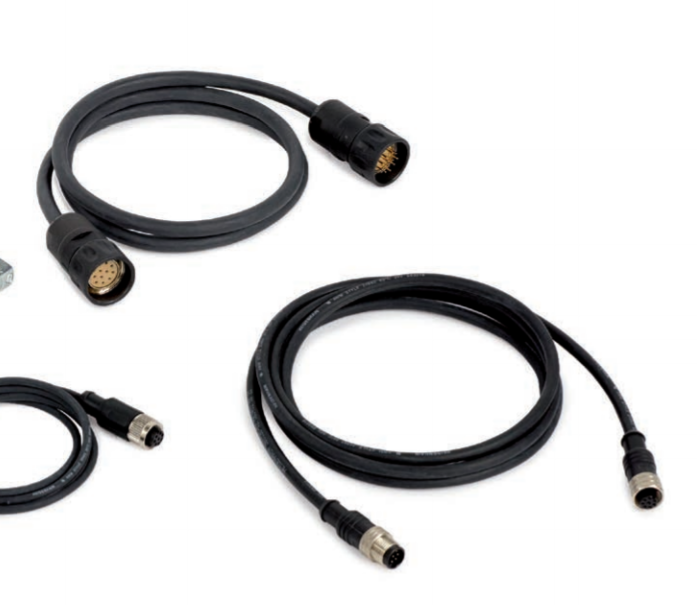

745574-06 HEIDENHAIN Adapter Cable 06M

Products Mode: 745574-06

Inquery Now
Description
745574-06 HEIDENHAIN  Adapter Cable 06M

Technical Data:

ID Number: 745574-06
Cable type: PUR Ø 6.0 mm
Cable structure: 6x2x0,19 mm²
Cable length: 6,00 m
Encoder side: M12 coupling, 14-pin
Follow-up electronics side: Plug, M.D. ribbon, locking by snap-in hook, socket, 15-pin in housing 20-pin
