Our warehouse is stocked with a variety of HEIDENHAIN Angle Encoders, including the RCN, ROC, ROC, and ROD series. Specifically, we offer the Heidenhain RCN 8000 absolute angle encoders, which are readily available for fast delivery to our valued customers. These encoders ensure accurate and reliable angle measurements, meeting the requirements of diverse applications.
HEIDENHAIN Angle Encoders have series of RCN, ROC, ROC, and ROD. We have Heidenhain RCN 8000 absolute angle encoders in warehouse and can provide our customers with fast delivery.
Absolute angle encoders for high productivity
- System accuracy of ±1” / ±2”
- Integrated stator coupling
- Hollow through shaft with ∅ 60 mm / ∅ 100 mm
- Position values per revolution: 29 bits
- High permissible shaft speeds
- Integrated temperature sensor
- Interfaces: EnDat 2.2, Fanuc Serial Interface αi, Mitsubishi high speed interface
- Available with functional safety

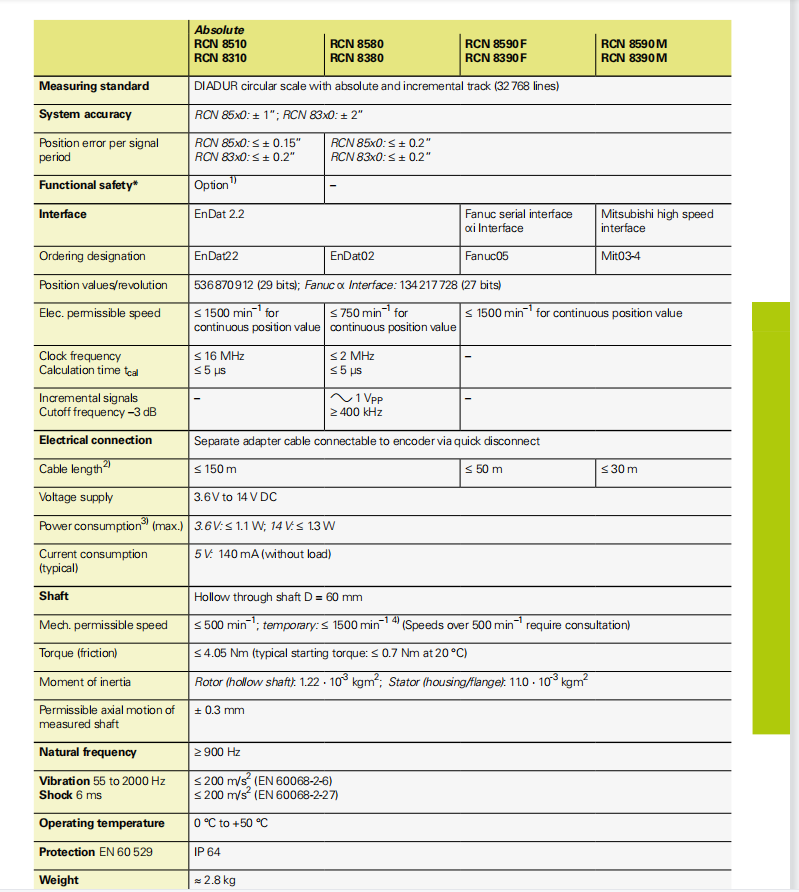

Technical Data:
HEIDENHAIN RCN 8000 Angle Encoders are with high permissible shaft speeds of up to 1500 rpm and feature a high line count of 32,768 lines and excellent signal quality with very high accuracy. For RCN series encoders even liquid contamination and condensation have very little effect on the scanning signals. The encoders have reliable scanning when application and can avoid disturbances in the machining process caused by encoder contamination. For details see attached PDF data sheet
HEIDENHAIN Angle Encoders RCN 8580, RCN 8510, RCN 8390, RCN 8380, RCN 8310
336669-11
RCN 8580
667597-01
32768
667593-01
RCN 8510
671068-01
RCN 8390F
671081-01+827607-01
671081-01+827607-03
667596-01
RCN 8380
667592-01
RCN 8310
667594-01
