What is a Pneumatic Valve?

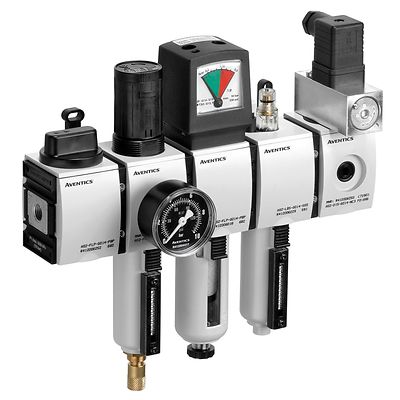

Pneumatic systems, powered by compressed air, are widely used across various industries for tasks ranging from automation to material handling. At the core of these systems is the pneumatic valve, a critical component that regulates airflow and direction, enabling precise control of movement and force. In this article, we’ll explore the construction, types, and technological advancements of pneumatic valves, tracing their development from traditional designs to modern innovations.
Pneumatic valves are essential to the operation of any pneumatic system, serving not only as control valves to regulate airflow but also as safety devices that can shut off the air supply during hazardous conditions or depressurize the system for safety.
The basic construction of a pneumatic valve consists of three key components:
Pneumatic valves come in various configurations, each designed to control airflow in specific ways. Below are some of the most common types:
3/2 Valve (Single-Acting Power): A 3/2 valve has three ports and two switching positions. It is typically used with single-acting cylinders, where compressed air is supplied to one chamber for the working stroke, and a spring mechanism handles the return stroke.
5/2 Valve (Full Pneumatic Control): This valve has five ports and two switching positions, allowing the pressurization and venting of two chambers simultaneously. It provides full pneumatic control over movements, making it ideal for double-acting cylinders.
5/3 Valve (Middle Position for Safety Applications): The 5/3 valve offers an additional "middle position" beyond the two standard switching positions. This extra position is often used in safety-critical applications, as it provides an intermediate state where no airflow occurs, ensuring a safe stop in the absence of actuating signals.
Over the years, pneumatic valve technology has advanced considerably. Initially, valves were operated mechanically, manually, or pneumatically. However, the development of electrically operated valves marked a significant shift. These valves use magnetic coils and control signals to perform switching, which has become the standard as programmable logic controllers (PLCs) gained widespread use in modern machinery.
Further innovation came with the introduction of valve islands, which consolidate multiple valves into a single, integrated component. Valve islands streamline installation, reduce space requirements, and improve overall system efficiency.
The latest advancement is the Motion Terminal, a groundbreaking technology in Digital Pneumatics. The Motion Terminal allows for flexible and dynamic control, where software apps assign various functions to valve positions. This innovation broadens the scope of what pneumatic systems can achieve, enhancing flexibility and functionality.
Pneumatic valves are fundamental to the performance of pneumatic systems, offering precise control over airflow and contributing to safety and efficiency in industrial applications. From traditional mechanical valves to cutting-edge Motion Terminal, pneumatic valve technology has continuously evolved to meet the demands of modern automation. Understanding the construction, types, and latest innovations in pneumatic valves is crucial for leveraging the full capabilities of pneumatic systems in a wide range of industrial settings.
