Linear Encoder: Types and Functions

Linear encoders are devices used to measure the linear displacement of an object, providing feedback in various industrial and automation applications. They convert linear motion into electrical signals that can be interpreted by control systems for precision measurement, positioning, and motion control. Linear encoders are widely used in CNC machines, robotics, medical devices, and other equipment requiring high accuracy.

---

Types of Linear Encoders

Linear encoders are classified based on the technology they use to detect and measure linear movement. The most common types include:

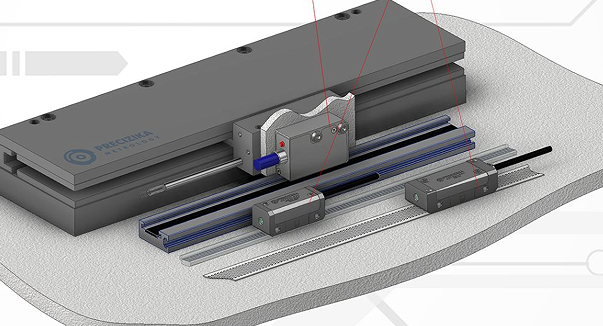

1. Optical Linear Encoders

• Principle: Uses a light source, typically an LED, and a photodetector to read a scale with alternating transparent and opaque lines (grating). The scale can be either reflective or transmissive.
• Applications: High-precision CNC machines, coordinate measuring machines, and semiconductor equipment.
• Advantages:
  • High resolution and accuracy (up to sub-micrometer levels).
  • Immune to magnetic interference.
• Disadvantages:
  • Sensitive to dust, dirt, and environmental contaminants.
  • Requires careful alignment.

2. Magnetic Linear Encoders

• Principle: Uses a magnetic scale with alternating north and south poles. A magnetic sensor head reads the changes in magnetic flux as it moves along the scale.
• Applications: Harsh industrial environments, woodworking machines, and automotive applications.
• Advantages:
  • Robust and resistant to dust, dirt, and oil.
  • Suitable for harsh environments with high vibration and temperature fluctuations.
  • Moderate resolution and accuracy.
• Disadvantages:
  • Lower accuracy compared to optical encoders.
  • Susceptible to strong external magnetic fields.

3. Capacitive Linear Encoders

• Principle: Uses variations in capacitance between a stationary scale and a moving sensor head. The change in capacitance is converted into electrical signals proportional to the linear displacement.
• Applications: Consumer electronics, automated assembly lines, and laboratory equipment.
• Advantages:
  • High resolution and good accuracy.
  • Insensitive to light and magnetic fields.
• Disadvantages:
  • Sensitive to humidity and contaminants like dust and oil.
  • Limited use in very harsh environments.

4. Inductive Linear Encoders

• Principle: Operates on the principle of electromagnetic induction. The encoder detects changes in inductance as the sensor head moves over a scale with embedded conductive patterns.
• Applications: Heavy-duty industrial machines, elevators, and steel processing equipment.
• Advantages:
  • Highly robust and durable.
  • Resistant to dirt, dust, and temperature changes.
• Disadvantages:
  • Lower resolution compared to optical encoders.
  • Complex signal processing.

5. Laser Linear Encoders

• Principle: Utilizes laser beams to measure displacement. It often employs interferometry techniques for ultra-precise measurements.
• Applications: High-precision laboratories, semiconductor manufacturing, and metrology.
• Advantages:
  • Extremely high accuracy (nanometer level).
  • Suitable for applications requiring precision over long distances.
• Disadvantages:
  • Expensive and complex to set up.
  • Sensitive to environmental conditions like temperature changes and vibrations.

---

Functions of Linear Encoders

Linear encoders serve several essential functions in various industries. Some of their primary functions include:

1. Position Feedback

• Linear encoders provide real-time position feedback to control systems, ensuring precise movement and positioning of machine components. This is critical in CNC machining, robotics, and automation systems.

2. Velocity Measurement

• In addition to position data, linear encoders can also measure the speed of linear motion, which is useful in applications requiring controlled acceleration and deceleration.

3. Precision Measurement

• Used in metrology and quality control, linear encoders offer high-resolution measurements for inspection and calibration purposes.

4. Closed-Loop Control Systems

• Linear encoders are integral to closed-loop control systems, where feedback from the encoder is used to adjust the motion of a system dynamically. This ensures accuracy and stability in systems like CNC machines and robotic arms.

5. Automation and Process Control

• Linear encoders are widely used in automation for tasks like cutting, engraving, and assembly, where precision is required to enhance productivity and reduce errors.

---

Conclusion

Linear encoders are essential for applications requiring precise measurement and control of linear motion. Choosing the right type of linear encoder depends on the specific requirements of accuracy, environmental conditions, and cost. Optical encoders offer high precision, while magnetic and inductive encoders are ideal for rugged environments. Capacitive and laser encoders fill niches where specific advantages, like immunity to magnetic interference or ultra-high precision, are needed.
