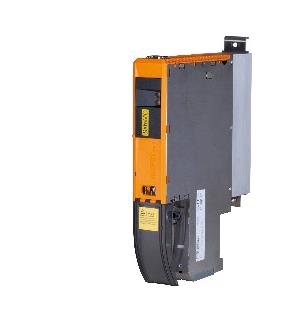

8BVI0110HWSS.000-1 B&R ACOPOS Inverter Module

MATERIAL NUMBER:

8BVI0110HWSS.000-1

DESCRIPTION:

Clearly structured, straightforward implementation via network-based safety technology
Modular expandability through virtual wiring
Immediate triggering of safety function due to short cycle times
Easy implementation with transparent control and status information, even in the standard application
Compact design

ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 15.1 A, AS, wall mounting

General information

B&R ID code	0xAA1A
Cooling and mounting type	Wall mounting
Slots for plug-in modules	2
Certifications
CE	Yes
Functional safety	Yes (openSAFETY)
UL	cULus E225616 Power conversion equipment
EAC	Yes
KC	Yes

DC bus connection

Voltage
Nominal	750 VDC
Continuous power consumption	11.2 kW
Power dissipation depending on switching frequency
Switching frequency 5 kHz	[0.16 * I_M² + 5.6 * I_M + 55] W
Switching frequency 10 kHz	[0.49 * I_M² + 4.7 * I_M + 95] W
Switching frequency 20 kHz	[0.87 * I_M² + 10 * I_M + 200] W
DC bus capacitance	330 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	23.5 µF
Max. power consumption	18 W + P_SMC1 + P_SLOT2 + P_{24 V Out} + P_HoldingBrake
Variant	ACOPOSmulti backplane

24 VDC output

Quantity	2
Output voltage
DC bus voltage (U_DC): 260 to 315 VDC	25 VDC * (U_DC/315)
DC bus voltage (U_DC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Motor connection

Quantity	1
Continuous power per motor connection	11 kW
Continuous current per motor connection	15.1 A_eff
Reduction of continuous current depending on switching frequency
Switching frequency 5 kHz	No reduction
Switching frequency 10 kHz	0.26 A/K (starting at 33°C)
Switching frequency 20 kHz	0.15 A/K (starting at -28°C)
Reduction of continuous current depending on installation elevation
Starting at 500 m above sea level	1.51 A_eff per 1000 m
Peak current	37.7 A_eff
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	598 Hz
Variant
U, V, W, PE	Connector
Shield connection	Yes
Terminal connection cross section
Flexible and fine-stranded wires
With wire end sleeves	0.25 to 4 mm²
Approbation data
UL/C-UL-US	30 to 10
CSA	28 to 10
Terminal cable cross section dimension of shield connection	12 to 22 mm
Max. motor line length depending on switching frequency
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	25 m
Switching frequency 20 kHz	10 m

Motor holding brake connection

Quantity	1
Output voltage	24 VDC +5.8% / -0%
Continuous current	2.1 A
Max. internal resistance	0.3 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Protective measures
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC -2% / -4%

Encoder interfaces

Quantity	1
Type	EnDat 2.2
Connections	9-pin female DSUB connector
Status indicators	UP/DN LEDs
Electrical isolation
Encoder - ACOPOSmulti	No
Encoder monitoring	Yes
Max. encoder cable length	100 m Depends on the cross section of the power supply wires in the encoder cable
Encoder power supply
Output voltage	Typ. 12.5 V
Load capacity	350 mA
Protective measures
Short-circuit proof	Yes
Overload-proof	Yes
Synchronous serial interface
Signal transmission	RS485
Data transfer rate	6.25 Mbit/s
Max. power consumption per encoder interface	P_SMC[W] = 19 V * I_Encoder[A]

Trigger inputs

Quantity	2
Circuit	Sink
Electrical isolation
Input - Inverter module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 µs ±0.5 µs (digitally filtered)
Falling edge	53 µs ±0.5 µs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Electrical properties

Discharge capacitance	0.14 µF

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C

Mechanical properties

Dimensions
Width	53 mm
Height	317 mm
Depth
Wall mounting	263 mm
Weight	Approx. 2.9 kg
Module width	1
