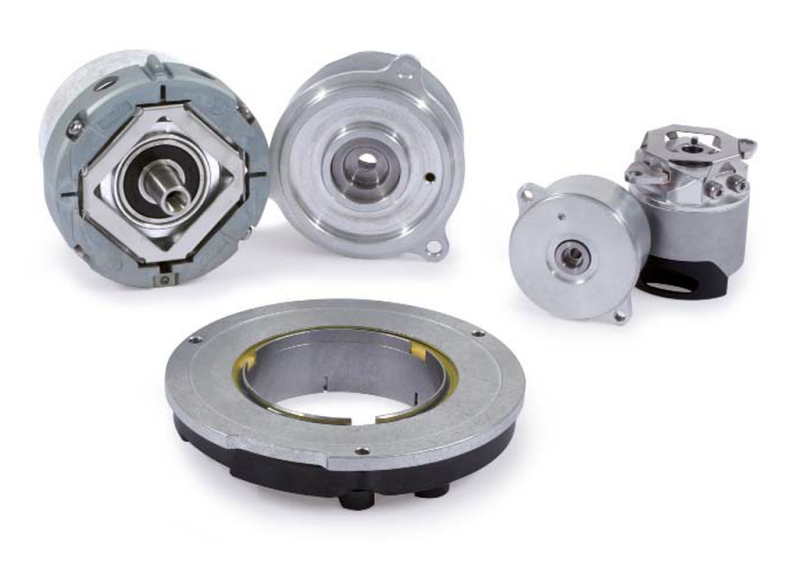

When choosing a rotary encoder, several key factors must be considered to ensure optimal performance for your application. Here are the most important considerations: Resolution: The resolution of a rotary encoder, often measured in pulses per revolution (PPR), determines the accuracy of the angular position measurement. A higher resolution is required for precise control, while lower resolution may be sufficient for basic applications. The choice should align with the level of precision needed for your application. Type of Encoder: Rotary encoders come in two primary types: incremental and absolute. Incremental encoders generate a series of pulses that indicate movement but do not retain position information when powered off. Absolute encoders provide a unique code for each shaft position, retaining the position even after power loss. Absolute encoders are typically more expensive but are essential for applications where position accuracy must be maintained without recalibration. Shaft Size and Mounting: Consider the shaft diameter and type (e.g., solid or hollow shaft) as well as the mounting options (flange, panel, etc.). Ensure compatibility with your equipment for secure installation and to prevent issues like misalignment or mechanical wear. Environmental Conditions: Rotary encoders are used in a variety of settings, from clean rooms to harsh industrial environments. When choosing an encoder, assess the temperature range, resistance to moisture, dust, vibration, and exposure to chemicals. An encoder with appropriate sealing or protective coatings may be necessary for extreme conditions. Output Signal: The output type of the encoder should match the input requirements of the receiving device (e.g., PLC or controller). Common output types include TTL (Transistor-Transistor Logic), HTL (High Threshold Logic), or analog signals. Ensure the signal format is compatible with your system's requirements for proper signal processing. Power Supply: Different encoders require different voltage levels for operation. Common power supply voltages include 5V, 12V, or 24V. It is important to choose an encoder that matches the available power supply of your system to avoid damage and ensure proper functionality. Speed and Frequency Response: Rotary encoders are designed to handle specific maximum speeds (measured in RPM) and frequencies (pulses per second). Ensure that the encoder can handle the expected speed and frequency of rotation in your application without signal degradation or failure. Size and Form Factor: The physical size and form factor of the encoder must fit within the available space in your equipment. Consider the overall dimensions, mounting style, and whether the encoder can be easily integrated into your system. Accuracy and Precision: Depending on the application, you may need an encoder with a high degree of accuracy. Applications in robotics, aerospace, and medical devices often require high precision, while other applications like automotive may be less stringent. Cost: While quality is critical, budget constraints can also impact your choice. Balance the need for precision, durability, and features with the project budget. While high-end encoders offer better accuracy and durability, simpler encoders may suffice for less demanding applications. Application-Specific Features: Some rotary encoders offer additional features like multiturn capability (which tracks the total rotation of the shaft over multiple revolutions), or fieldbus communication interfaces like CAN, EtherCAT, or Profinet for integration into complex systems. Assess whether these advanced features are necessary for your application. By carefully evaluating these factors, you can select the right rotary encoder that meets your technical, environmental, and budgetary requirements, ensuring reliable and efficient operation.
