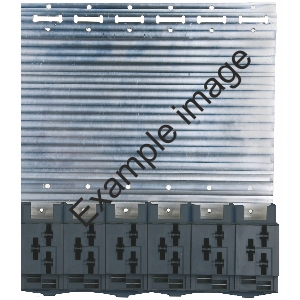

8B0M0080HW00.000-1 B&R ACOPOS Mounting Plate

MATERIAL NUMBER:

8B0M0080HW00.000-1

DESCRIPTION:

Pioneering power distribution system
Integrated distribution of power and auxiliary power supply
Shockproof
Option slots possible

ACOPOSmulti mounting plate with backplane, 8 slots, HV, wall mounting, 75 mm² and 22 mm², complete

General information

Number of slots	8
Cooling and mounting type	Wall mounting
Certifications
CE	Yes
UL	cULus E225616 Power conversion equipment

DC bus connection

Voltage
Nominal	750 VDC
Continuous power	200 kW
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	20 kW per 1000 m
Cross section
DC+, DC-	72 mm²
PE	72 mm²

24 VDC auxiliary supply

Voltage	25 VDC ±1.6%
Continuous power	1500 W
Max. power consumption per slot (P_Fan8B0M...)	8.25 W
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	150 W per 1000 m
Cross section
24 VDC, COM	21.3 mm²

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Evenness of mounting surface	Evenness of 1 mm over the entire mounting surface
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C

Mechanical properties

Dimensions
Width	428 mm
Height	385 mm
Depth	13.5 mm
Weight	4.2 kg
