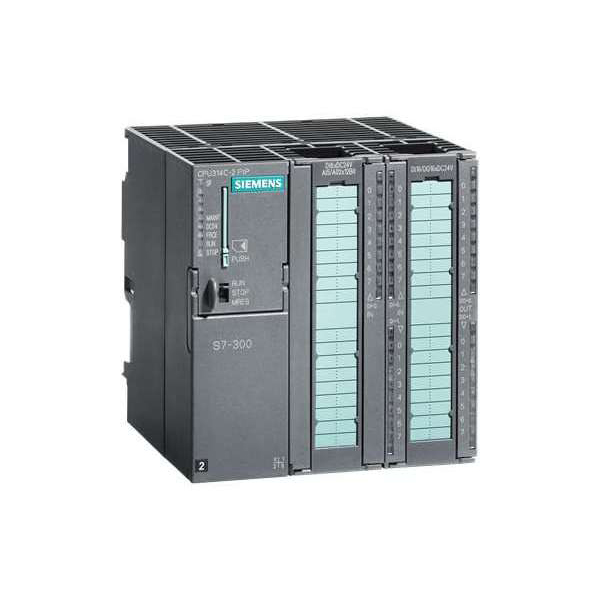

The Siemens S7-300 series is a classic programmable logic controller (PLC) series used in industrial automation control systems. The S7-300 series includes various digital output (DO) modules for controlling the switch and relay operations of external devices. Here are some common information about the S7-300 series DO module:





Module Model: The model of Siemens S7-300 series DO modules usually starts with "SM" and is followed by a string of numbers to indicate the specific model, such as SM321, SM322, etc. Different models may have different specifications and functions.

Quantity and Type: The S7-300 series DO module provides a variety of digital output channels with different quantities and types. Common modules can provide 8, 16, or 32 digital output channels. Each channel can output a digital signal for controlling switches or relays of external devices.

Working voltage: The S7-300 series DO modules typically support various working voltages to meet different application requirements. The common working voltage ranges include 24V DC, 120V AC, and 230V AC.

Connection method: The S7-300 series DO module is usually connected to the S7-300 series PLC host through a backplane bus. These modules occupy a slot position on the rack and interact with the PLC host for digital signals.

Parameters and Configuration: Each specific S7-300 series DO module has specific parameters and configurations. These parameters include output type (such as switch type or relay type), voltage range, output power, input/output speed, etc. The specific parameters can be found in the relevant product manual or specification sheet.

For detailed product launch background, wiring diagrams, or parameter tables, it is recommended that you visit Siemens' official website. If you need the selection of SIEMENS products, please leave us a message.
