The Working Principle of Hydraulic Pumps and Their Selection for Different Environments

A hydraulic pump is a crucial component in hydraulic systems, responsible for supplying pressurized fluid to power various applications. Its primary function is to convert the mechanical energy from power sources (such as electric motors or internal combustion engines) into hydraulic energy (pressure energy of the fluid). Hydraulic pumps can be classified into two types based on the control of output flow:

• Variable Pump: The flow can be adjusted according to system requirements.
• Fixed (Quantitative) Pump: The flow remains constant and cannot be adjusted.

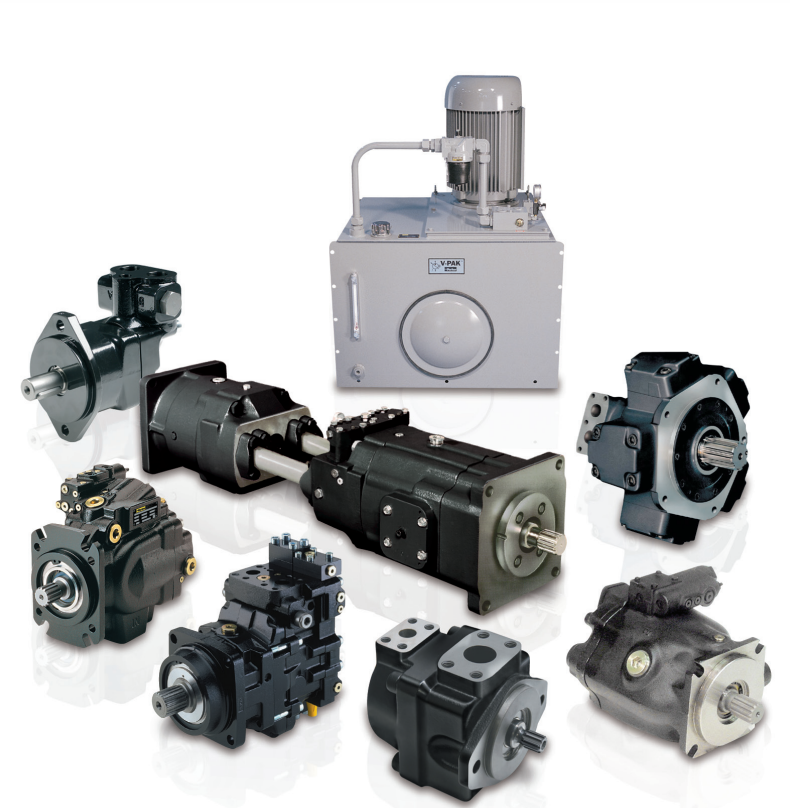

The most common types of hydraulic pumps are gear pumps, vane pumps, and piston pumps, each with unique features suited for specific applications and working conditions.

Types of Hydraulic Pumps and Their Characteristics

1. Gear Pumps:

   • External Gear Pump: Known for its simplicity, low cost, and robustness, it is insensitive to fluid contamination but has drawbacks such as large pulsation and high noise levels.
   • Internal Gear Pump: Offers lower noise and smoother operation with small pulsation, but it comes at a higher cost. It is also less sensitive to contamination.

2. Vane Pumps:

   • Single-Acting Vane Pump: Provides variable volume output and is suitable for low-pressure applications. However, it suffers from radial unbalanced forces and produces high noise.
   • Double-Acting Vane Pump: Characterized by constant flow, low noise, and a compact design. It is insensitive to radial unbalanced forces and offers a smoother operation.

3. Piston Pumps:

   • These pumps are used in high-pressure environments and can offer variable flow. However, they are more sensitive to fluid contamination and tend to be noisy.

---

Criteria for Selecting a Hydraulic Pump

Given that different environments require different hydraulic pump performance, the following criteria should be considered when selecting the appropriate pump:

1. Variable Flow Requirement:

   • If variable flow is needed, choose pumps like radial piston pumps, axial piston pumps, or single-acting vane pumps.

2. Working Pressure:

   • Piston Pumps: Best suited for high-pressure applications, typically up to 31.5 MPa.
   • Vane Pumps: Usually operate at 6.3 MPa, but some models can handle pressures up to 16 MPa in medium-pressure systems.
   • Gear Pumps: Ideal for low-pressure applications at around 2.5 MPa, but with modifications, they can reach pressures up to 21 MPa, making them suitable for medium-to-high pressure environments.

3. Resistance to Contaminants:

   • Gear Pumps: Known for the best resistance to contamination, making them ideal for environments where fluid cleanliness is a challenge.
   • Vane Pumps: Moderate resistance to contaminants.
   • Piston Pumps: These pumps are more sensitive to contamination, requiring cleaner operating conditions.

4. Noise Level:

   • For low-noise environments, choose pumps like the internal gear pump, double-acting vane pump, or screw pump. These pumps offer smooth operation with minimal pulsation, reducing noise significantly.

5. Efficiency:

   • Axial Piston Pumps: Offer the highest total efficiency among hydraulic pumps.
   • Vane Pumps: Provide moderate efficiency.
   • Gear Pumps: Typically have the lowest efficiency, but the efficiency increases with larger displacement or at rated operating conditions.

---

Summary

• Variable flow applications favor piston pumps and single-acting vane pumps.
• For high-pressure systems, piston pumps are preferred, while gear pumps work well for low to medium pressures.
• In environments with high contamination risks, gear pumps perform the best due to their high tolerance for contaminants.
• For quiet operations, internal gear pumps and double-acting vane pumps are optimal.
• For maximum efficiency, axial piston pumps should be chosen, especially in high-demand environments where energy savings are critical.

Selecting the right hydraulic pump depends on the specific requirements of pressure, flow control, environmental conditions, noise tolerance, and overall efficiency.
