PARKER F11/F12 was first produced in 1968 by Volvo Flygmator AB. Till now, it is still going strong and widely used in mobile hydraulic areas. F11/F12 motors are fixed displacement and bi-directional, they can be used as motors in very demanding and really touch applications. Besides that, F11/F12, they are efficient, saving energy. They can operate on common hydraulic fluids as well as on biodegradable and fire-resistant fluids.

For Original Equipment Manufacturers who are in need of hard-working hydraulic, fixed displacement motors or pumps with proven, unsurpassed reliability and long, trouble-free service life, the F11/F12 is the obvious right choice.

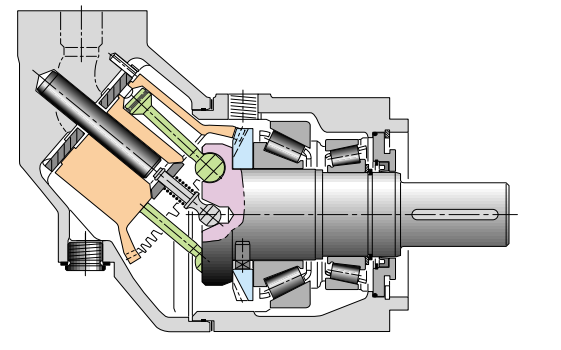

Here we introduce you to the important advantages of the PARKER F11/F12 motor/pump.

Thanks to low-weight pistons with laminated piston rings, the F11/F12 has a low internal leak age, which is capable of very high speeds, tolerates temperature shocks, and can accept low-viscosity fluids.

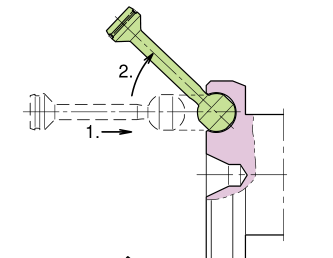

Thanks to the spherical piston end which is well secured and lubricated in the corresponding shaft cavity, even when being subject to severe hydraulic and mechanical shocks, the piston stays in place. See the picture below, the piston can be made with a very small diameter ‘waist’.

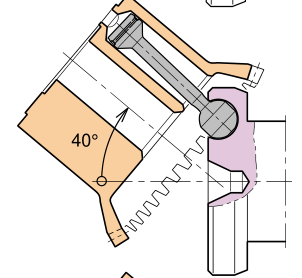

Thanks to the 40° angle between shaft and cylinder barrel, the F11/F2 is compact and lightweight with small installation dimensions.

Because of the sturdy timing gear between shaft and cylinder barrel, the F11/F12 tolerates rapid speed variations and high vibration levels.
Because of the low-friction piston rings and piston ball end bearing surface the F11/F12 has the highest take-off and running torque with a minimum of energy loss.

Benefiting from these advantages, the F11/F12 can be applicated in very special tough environments.

Here below, we introduce some application cases of F11/F12 in our projects and solutions.

The vibratory hammer

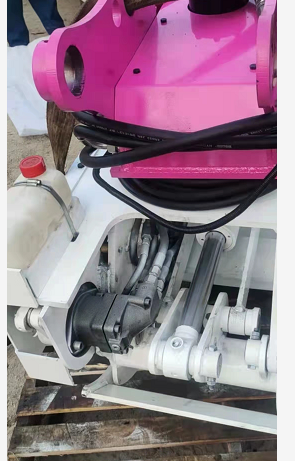

The vibratory hammer utilizes a number of hydraulic motors driving counter-rotating eccentrics that produce an up-and-down motion that forces the pile down into the ground. The drive unit (motor, eccentrics, and connecting gears) is attached by springs to a frame which in turn is wire suspended in a crane. The hydraulic motor must consequently withstand very heavy shaking. F11/F12 motors are very common in this application, such as F12-060, F12-090, F12-110 motors are usually used together with the vibratory hammer.

Forest machines

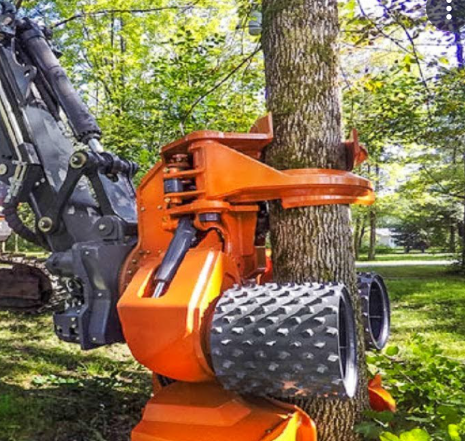

This ‘full-tree harvester’ cuts the tree at the root, fells it, delimbers it, and cuts it into suitable lengths. The logs are then transported to a plant for further processing into planks or paper pulp. A forest machine puts very high demands on availability, reliability, and easy servicing. F11-MUVL motors can match good with this application environment.

Pile drivers

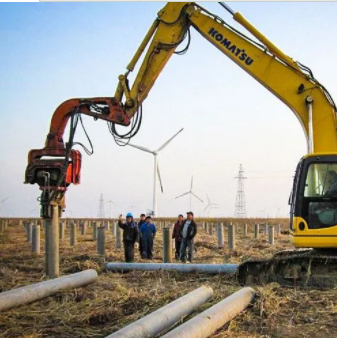

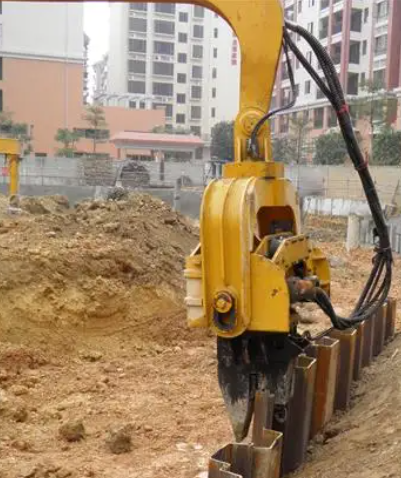

Compared to the old falling weight’ method, the modern hydraulic vibratory hammer is much lighter, faster, and quieter with low operating and maintenance costs. Pile drivers are utilized for foundation jobs and also in built-up areas and off-shore/underwater work. Such as F12-040, F12-060, F12-080, F12-090, F12-110 motors are usually used together with the vibratory hammer.

Excavators

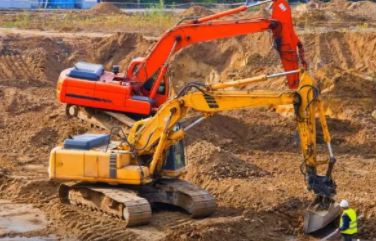

The large crawler excavator, e.g., is used for a wide variety of jobs as a high-production machine in road construction and in the mining industry. The hydraulic excavator is one of the most common mobile machines today. And the most important requirements are availability and reliability. The F11/F12 is a perfect partner for a perfect excavator.

If you are looking for a professional partner for the original F11/F12 motor/pump, please send us Emails for more details and quotations.

Here below are the common item numbers of PARKER F11/F12 Motor/Pump:

ITEM CODE	PART NUMBER
F12-060-MF-IV-D-000-0000-P0	3786587
F12-060-MF-IV-K-000-0000-P0	3783040
F12-060-RF-IV-K-000-0000-P0	3720767
F11-005-GB-CV-K-000-0000-00	3709236
F11-005-MB-CV-K-000-0000-00	3707249
F11-005-MB-CV-K-000-0000-0T	3782009
F11-005-RB-CV-D-000-0000-00	3795666
F11-006-MB-CV-K-000-0000-P0	3784808
F11-006-MB-CV-K-209-0000-0X	3782985
F11-010-HU-CV-K-000-0000-00	3707310
F11-010-MB-CV-K-000-0000-00	3706030
F11-010-MB-CV-K-000-0000-P0	3720556
F11-010-RB-CV-K-000-0000-00	3795259
F11-012-RB-CV-K-000-0000-00	3786403
F11-014-LU-SV-S-000-0000-00	3785006
F11-014-SF-IV-K-000-0000-P0	3786344
F11-019-HB-CV-D-000-0000-P0	3721029
F11-019-MB-CN-K-000-0000-00	3703516
F11-019-MB-CV-K-000-0000-P0	3787796
F11-019-RB-CV-K-000-0000-00	3795286
F12-030-MF-IV-K-000-0000-P0	3721560
F12-030-RF-IV-K-000-0000-P0	3721596
F12-040-MF-IV-D-000-0000-P0	3786869
F12-040-MF-IV-D-000-L130-P0	3788656
F12-040-MF-IV-K-000-0000-P0	3785048
F12-040-MS-SV-S-000-0000-P0	3783160
F12-040-MS-SV-T-000-0000-P0	3786812
F12-040-MS-SV-T-000-0000-P0	3786812
F12-040-RF-IV-K-000-0000-P0	3799539
F12-060-MF-IV-D-000-0000-P0	3722583
F12-060-MF-IV-K-000-0000-P0	3722587
F12-060-MS-SV-S-000-0000-P0	3722595
F12-060-MS-SV-S-000-0000-P0	3787601
F12-060-MS-SV-S-000-L130-P0	3722597
F12-060-MS-SV-T-000-0000-P0	3722603
F12-060-RS-SV-T-000-0000-P0	3722618
F12-080-LF-IV-K-000-0000-P0	3783377
F12-080-MF-IV-D-000-0000-P0	3786110
F12-080-MF-IV-D-000-L130-P0	3787579
F12-080-MF-IV-K-000-0000-P0	3780809
F12-080-MS-SV-T-000-0000-P0	3786339
F12-080-RF-IV-K-000-0000-P0	3780800
F12-080-RS-SV-T-000-0000-P0	3780803
F12-090-MF-IV-D-000-0000-P0	3786986
F12-090-MF-IV-D-000-0000-P0	3786986
F12-090-MS-SV-S-000-0000-P0	3786810
F12-110-MF-IV-K-000-0000-P0	3786277
F12-110-MS-SV-S-000-0000-P0	3781549
F12-110-RF-IV-K-000-0000-P0	3781558
F12-110-RS-SV-T-000-0000-P0	3781564
F12-125-RF-IV-K-000-0000-P0	3786651
F12-152-MF-FV-G-000-0000-P0	3721294
F12-152-MF-SV-S-000-0000-P0	3721144
F12-250-QF-SV-K-000-0000-P0	3788847
F12-250-RF-SV-K-000-0000-P0	3788455
PISTON ASSY F11-005	3708656
PISTON ASSY F12-040	3791587
PISTON ASSY F12-060	3709470
PISTON ASSY F12-080	3709307
PISTON RING KIT 21.60 F1-060	3786916
PISTON RING KIT 23.00 F12-125	3786920
RING GEAR F12-182	3720147
