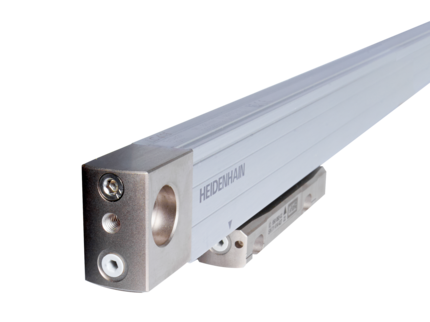

689680-21 LC 485 1240mm Absolute Linear Encoder HEIDENHAIN CHINA STOCK

689680-21 LC 485 1240mm Absolute Linear Encoder



Identnumber: 689680-21
Measuring length: 1240 mm
Total length: ML+138 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Measuring step 1: 10.0000 nm
Fastening type: End block + mounting spar
End block: 12A
Output signal: sinusoidal voltage signals (1 Vpp)
Output code: Binary
Data interface: EnDat02 Synchronous serial EnDat 2.2 with incremental signals
Power supply: 3.6 V ... 14 V
Electrical connection: Flange socket, male, 14-pin
Special characteristics,
linear encoder: none
