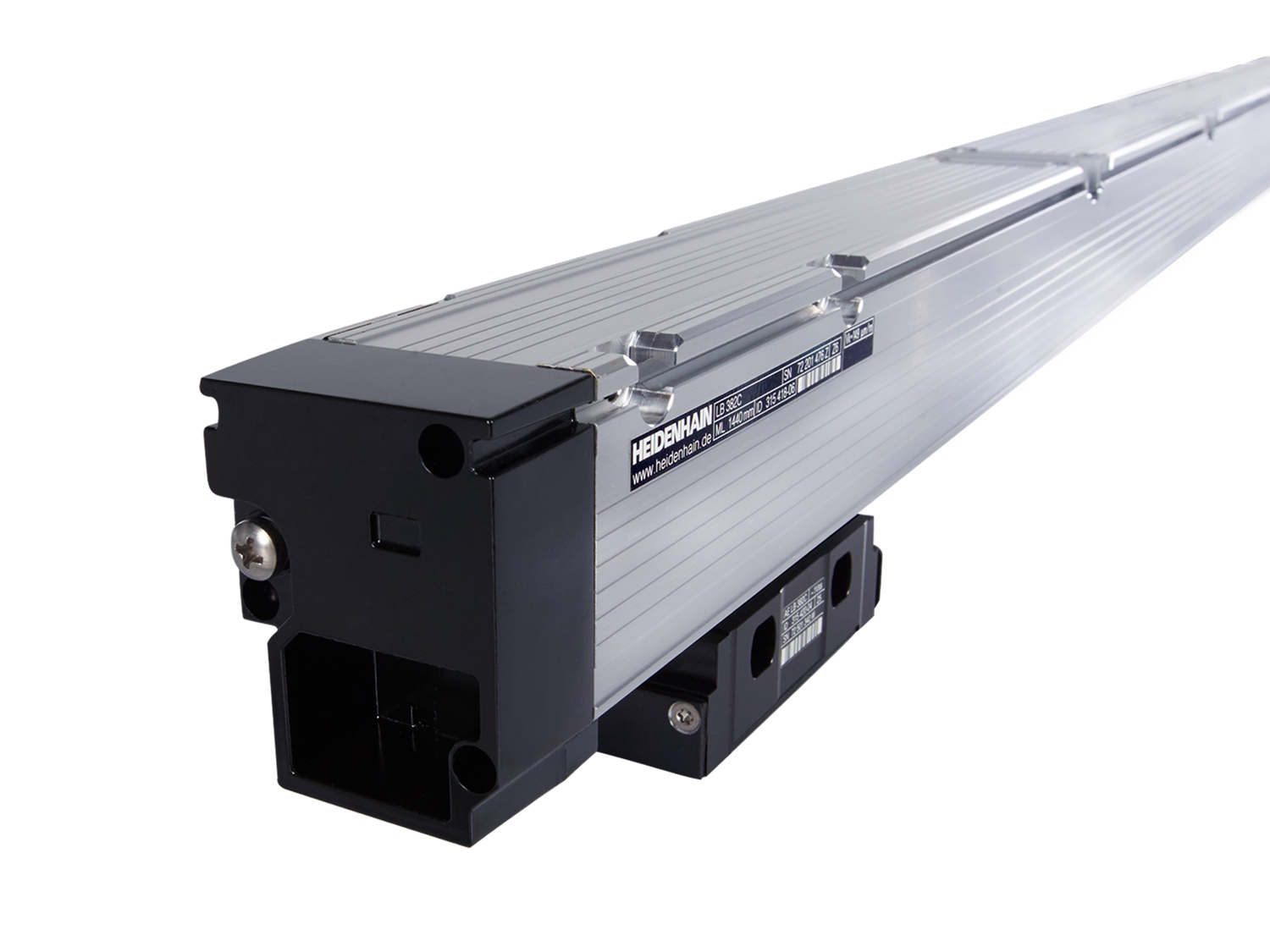

689680-18 LC 485 Absolute Linear Encoder



ID Number: 689680-18
Measuring length: 1020 mm
Total length: ML+138 mm
Accuracy class: ± 5.0 µm
Graduation period: 20.000 µm
Measuring step 1: 10.0000 nm
Mounting type: End pieces + mounting rail
End piece: 12A
Output signal: sinusoidal voltage signals (1 Vpp)
Output code: Dual
Data interface: EnDat02 synchronous serial EnDat 2.2 with incremental signals
Power supply: 3,6 V ... 14 V
Electrical connection: flange socket, pin, 14-pin
Special features:

Length measuring device: none
